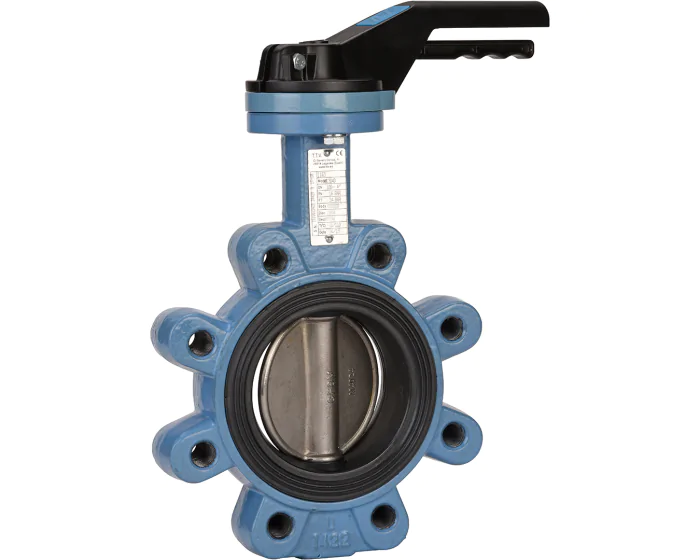

The 1149 series valve is a TTV lug butterfly valve, with a ductile iron body and high temperature EPDM seat. It can be used to close or regulate networks of cold/hot water, seawater, alcohol, alkaline substances, sodium hydroxide.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Construction standard | ISO 10631. EN 593 |
| CE risk category | III Module H |
| Type of paint | Rilsan |
| EN face-to-face standard | EN 558 Series 20 |
| Brand | TTV |
| Tightness test standard | ISO 5208 Rate A |
| Type of seat | Removable |
| Notch plate | Yes |
| Opening device | Lever |
| Application | Air conditioning / Heating |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 304 |
| Lockable | Yes |
| Square, star (mm) | Square 8 mm |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Seat | EPDM HT |
| Body material | Ductile iron |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F05/F07 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| TS max (°C) | 130 |
| TS min (°C) | -20 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Through shaft | Yes |
| Warranty period | 5 years |
| CE | Yes |
| Handle material | Ductile iron |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN40 - 1''1/2 Between flanges PN10/16 | 1149L040 | S1009691 |
€95.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' Between flanges PN10/16 | 1149L050 | S1009692 |
€95.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 Between flanges PN10/16 | 1149L065 | S1009693 |
€110.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' Between flanges PN10/16 | 1149L080 | S1009694 |
€134.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' Between flanges PN10/16 | 1149L100 | S1009695 |
€158.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' Between flanges PN10/16 | 1149L125 | S1009696 |
€190.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' Between flanges PN10/16 | 1149L150 | S1009697 |
€229.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Between flanges PN10 | 1149L200 | S1009698 |
€427.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' Between flanges PN16 | 1149L201 | S1009699 |
€427.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' Between flanges PN10 | 1149L250 | S1009700 |
€684.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' Between flanges PN16 | 1149L251 | S1009701 |
€659.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN300 - 12'' Between flanges PN10 | 1149L300 | S1009702 |
€988.33
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN300 - 12'' Between flanges PN16 | 1149L301 | S1009703 |
€952.37
(excl. btw)
|
add to cart |
